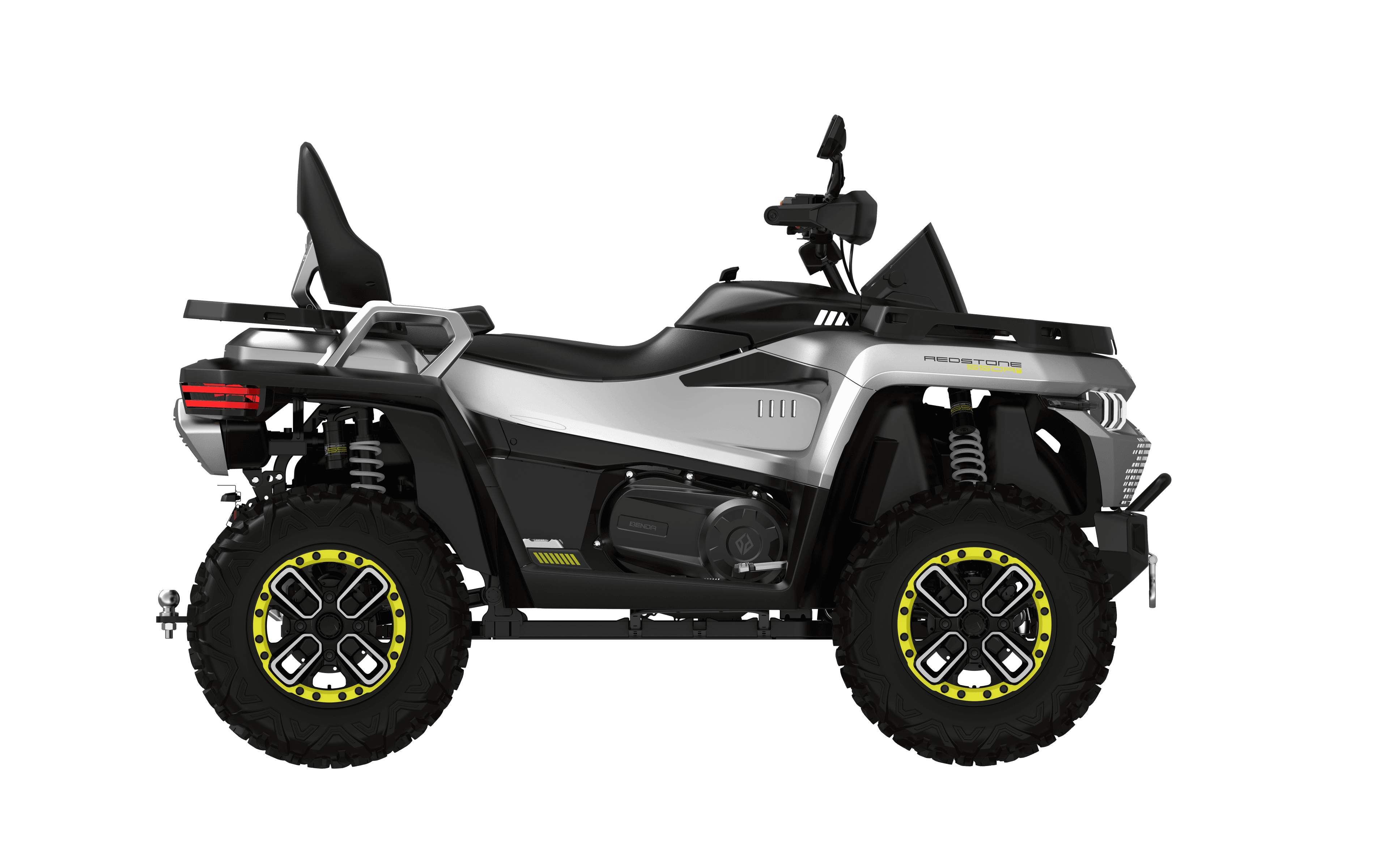

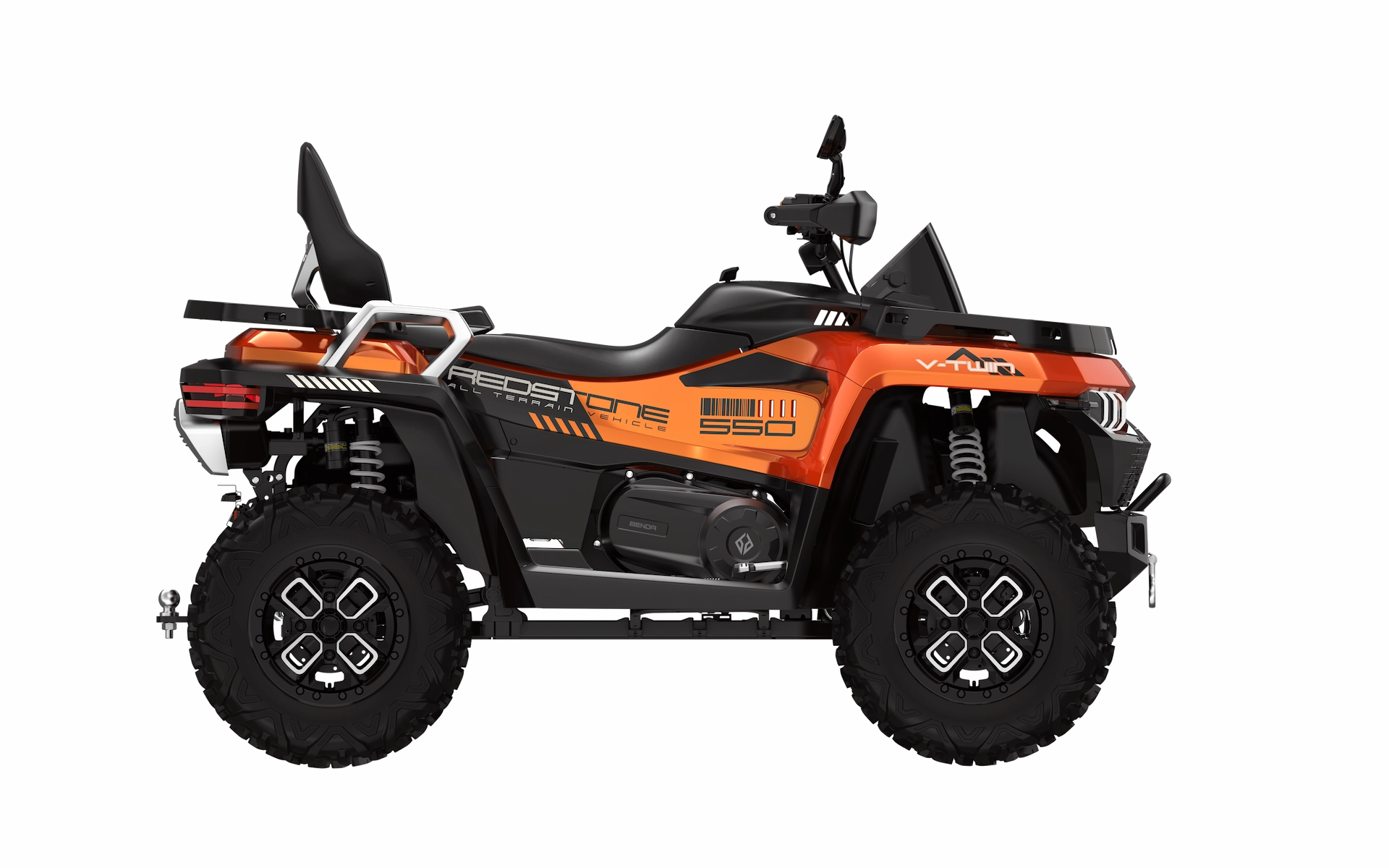

Redstone 550 R2

Not in stock

The two-seat edition of the Redstone 550 adds a passenger seat and extended wheelbase while retaining the same 500cc V-twin, 48 HP powerplant and 2WD/4WD system. Share the adventure with a co-pilot.

Technical Specifications

Engine

Engine Type

V2, 4-Stroke, SOHC, Liquid-Cooling

Displacement

500cc

Max. Power

48HP

Max. Torque

46N.m / 5500rpm

Fuel System

Electronic Fuel Injection (EFI)

Transmission

CVT (L/H/N/R/P)

Drivetrain

Selectable 2WD/4WD with Differential Lock

Dimensions & Weight

L × W × H

2365 × 1245 × 1450mm

Wheelbase

1500mm

Dry Weight

425kg

Ground Clearance

305mm

Fuel Tank Capacity

30L

Seating

2-Seat Configuration

Chassis & Brakes

Front Suspension

Dual A-Arm with Sway Bar, 230mm Travel

Rear Suspension

Independent Torsional Trailing Arm, 250mm Travel

Brakes

Dual 220mm Disc Brakes

Electronic Equipment

Lighting

Automotive-Grade LED Matrix

Drive Modes

Standard / Work / Sport
