Redstone 550

Not in stock

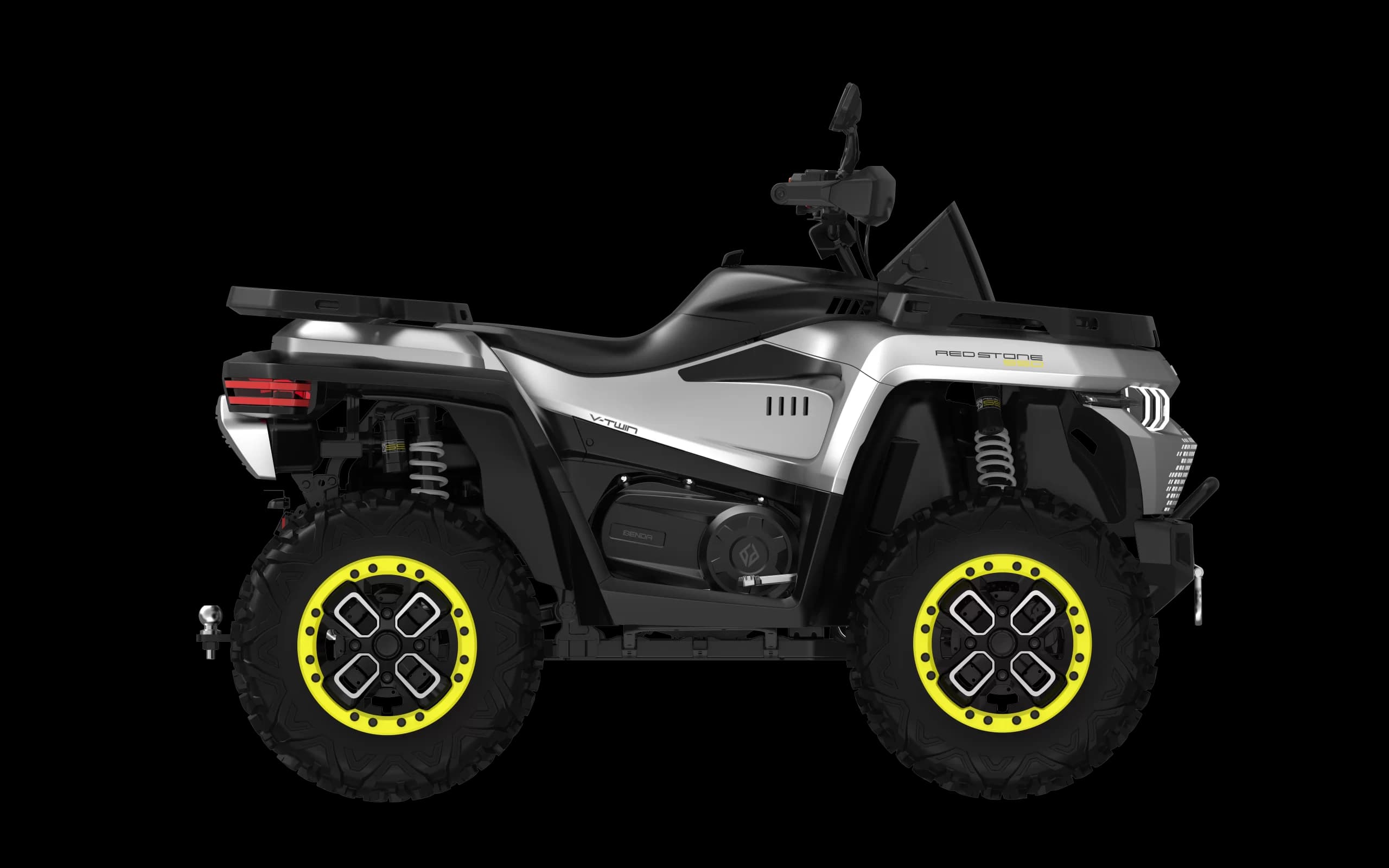

Joy In Every Task. The Redstone 550 is built around a powerful 500cc V-twin engine with 48 HP, selectable 2WD/4WD with differential lock, and tri-mode driving (Standard, Work, Sport). Independent suspension with over 230mm travel, a CVT transmission, and 30L fuel tank make it ready for any terrain.

Technical Specifications

Engine

Engine Type

V2, 4-Stroke, SOHC, Liquid-Cooling

Displacement

500cc

Max. Power

48HP

Max. Torque

46N.m / 5500rpm

Fuel System

Electronic Fuel Injection (EFI)

Throttle

Intelligent Electronic Throttle

Transmission

CVT (L/H/N/R/P)

Drivetrain

Selectable 2WD/4WD with Differential Lock

Dimensions & Weight

L × W × H

2165 × 1245 × 1260mm

Wheelbase

1300mm

Seat Height

950mm

Dry Weight

415kg

Ground Clearance

305mm

Fuel Tank Capacity

30L

Towing Capacity

697kg

Chassis & Brakes

Front Suspension

Dual A-Arm with Sway Bar, 230mm Travel

Rear Suspension

Independent Torsional Trailing Arm, 250mm Travel

Brakes

Dual 220mm Disc Brakes

Front Tires

25×8×12in

Rear Tires

25×10×12in

Electronic Equipment

Lighting

Automotive-Grade LED Matrix

Drive Modes

Standard / Work / Sport
